You can configure networks in Mabdeck to be able to utilise PAYG monitoring capabilities for selected transferable protocol hub manufacturers. We currently support Secure Liberty 100 hubs and Guru hubs. PAYG hub and account handling is not a basic feature in Mabdeck, and you need to have this activated in your license and have accounts with your chosen PAYG hub manufacturer. If you have any questions about this, contact our support team.
This article will show you how to activate prepayment on an existing network. To create a brand new network with prepayment functionality, please go to ADDING A NETWORK.
Navigating to network
Networks can be found in the System Configuration menu...

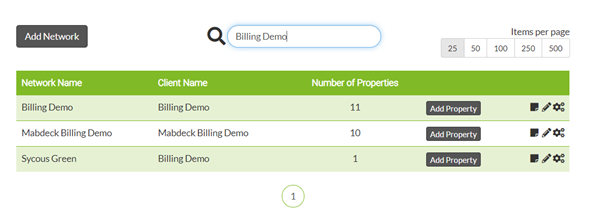

After entering the Networks menu, you will be able to see all existing networks that have been added and can click on the setup cogs to enable the prepayment functionality.
Enabling prepayment on a network

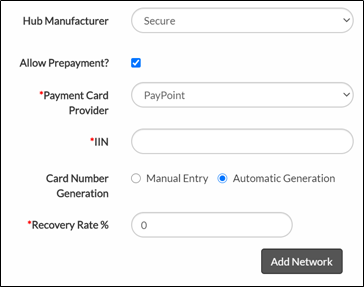

After you've selected the network you want to enable, scroll to the bottom of the menu and select the model of hub on your network. The menu will then expand with the fields for configuring your PAYG functionality.
If you're just using your hub as a data collector, you can un-check the Allow Prepayment option to disable PAYG billing.
If you want the option to operate in PAYG mode, select the option, then provide details on the payment provider and input your IIN. You can set new card numbers to automatically generate or require manual entry.
The Recovery Rate % will allow you to set the percentage of each top up that is allocated to the hubs debt.
What's next?
You can now add your individual hubs through hardware and supplies, and manage your Mabdeck accounts in prepayment or PAYG mode.
